Parts to suit Yamaha

LiteTek Carburettor Seal Kits to suit
Yamaha FZR1000 (1989W - 1995F)
Made from Fluorosilicone & FKM(Viton®)

  • Guarantee: We control the production of these parts. We do not sell products produced by other companies. If you have any problems with your product then contact us immediately and we will take action to ensure that the issue is dealt with to your satisfaction. If you are not satisfied with your purchase then return the goods to us within 30 days for a full refund.
  • Please check the Yamaha part numbers to ensure that this is the correct kit for your motorcycle before proceeding with your purchase.
  • Union Jack UK residents can also buy direct from our approved UK distributor, Vapourworx

FREE shipping worldwide when order total is greater than 1500 THB



Service Kit - 58 pieces
Part Number: CK-Yamaha-FZR1000_89-95
Price: 3270 THB (Thai Baht)

3GM-14997-00

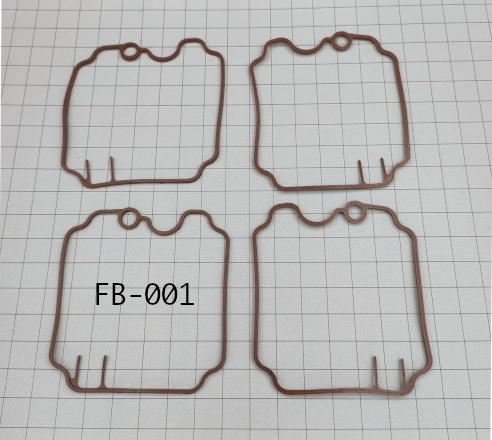

Float Bowl Seal
Part No: FB-001
Original Part No: 3GM-14997-00
Material: FKM (70% Fluorine)
Qty in Kit: 4
Assembly Guide 		3LF-14147-00
Jet Housing Seal
Part No: JH-001
Original Part No: 3LF-14147-00
Material: FKM (70% Fluorine)
Qty in Kit: 4
Assembly Guide
3FV-14147-00
Top Cap O-Ring
Part No: OR-001
Original Part No: 3FV-14147-00
Material: FKM
Qty in Kit: 4
Assembly Guide 		3EN-14147-00
Float Mount O-Ring
Part No: OR-002
Original Part No: 3EN-14147-00
Material: Fluorosilicone
Qty in Kit: 4
Assembly Guide
1AE-14147-00
Slide Housing O-Ring
Part No: OR-018 replaces OR-003
Original Part No: 1AE-14147-00
Material: FKM
Qty in Kit: 4
Assembly Guide 		1AE-14227-00
Main Jet Sq-Ring
Part No: SR-004
Original Part No: 1AE-14227-00
Material: FKM
Qty in Kit: 4
Assembly Guide 		Pilot Screw O-Ring
Pilot Screw O-Ring
Part No: OR-005
Original Part No: *
Material: FKM
Qty in Kit: 4
Assembly Guide 		Washer
Pilot Screw Washer
Part No: WS-001
Original Part No:
Material: Stainless Steel
Qty in Kit: 4
Assembly Guide
Merge Cavity o-ring
Pilot Merge Cavity O-Ring
Part No: OR-010
Original Part No: n/a
Material: Fluorosilicone
Qty in Kit: 4
Assembly Guide 		3EN-14997-00
Fuel Seal
Part No: FS-001
Original Part No: 3EN-14997-00
Material: Viton (FKM)
Qty in Kit: 6
Is it Viton? 		3LK-14147-00
Vent O-Ring
Part No: OR-006
Original Part No: 3LK-14147-00
Material: FKM
Qty in Kit: 4
Assembly Guide 		822-14147-00
Float Bowl Vent O-Ring
Part No: OR-007
Original Part No: 822-14147-00
Replacement No: 36Y-14147-00
Material: FKM
Qty in Kit: 4
Assembly Guide
3EN-1410A-00
Choke Plunger Caps
Part No: CS-001
Original Part No: **
Material: HNBR
Qty in Kit: 4
 M4 x 12 x 0.5
Throttle Synch Screws
Part No: SC-008
Original Part No: n/a
Material: Stainless Steel
Qty in Kit: 3
* Part of Yamaha Assembly Part No: 12R-14105-00 ** Part of Yamaha Assembly Part No: 3EN-1410A-00



Service Kit A - 36 pieces
Part Number: CKA-Yamaha-FZR1000_89-95
Price: 2220 THB (Thai Baht)

3GM-14997-00
Float Bowl Seal
Part No: FB-001
Original Part No: 3GM-14997-00
Material: FKM (70% Fluorine)
Qty in Kit: 4
Assembly Guide 		3LF-14147-00
Jet Housing Seal
Part No: JH-001
Original Part No: 3LF-14147-00
Material: FKM (70% Fluorine)
Qty in Kit: 4
Assembly Guide
3FV-14147-00
Top Cap O-Ring
Part No: OR-001
Original Part No: 3FV-14147-00
Material: FKM
Qty in Kit: 4
Assembly Guide 		3EN-14147-00
Float Mount O-Ring
Part No: OR-002
Original Part No: 3EN-14147-00
Material: Fluorosilicone
Qty in Kit: 4
Assembly Guide
1AE-14147-00
Slide Housing O-Ring
Part No: OR-018 replaces OR-003
Original Part No: 1AE-14147-00
Material: FKM
Qty in Kit: 4
Assembly Guide 		1AE-14227-00
Main Jet Sq-Ring
Part No: SR-004
Original Part No: 1AE-14227-00
Material: FKM
Qty in Kit: 4
Assembly Guide 		Pilot Screw O-Ring
Pilot Screw O-Ring
Part No: OR-005
Original Part No: *
Material: FKM
Qty in Kit: 4
Assembly Guide 		Washer
Pilot Screw Washer
Part No: WS-001
Original Part No:
Material: Stainless Steel
Qty in Kit: 4
Assembly Guide
Merge Cavity o-ring
Pilot Merge Cavity O-Ring
Part No: OR-010
Original Part No: n/a
Material: Fluorosilicone
Qty in Kit: 4
Assembly Guide








Throttle Shaft Kit C - 20 pieces
Part Number: CKC-Yamaha-Large
Price: 400 THB (Thai Baht)

256-14997-00
Throttle Shaft Seal
Part No: TS-001
Original Part No: 256-14997-00
Material: Viton
Qty in Kit: 6
Assembly Guide 		Throttle Shaft Screw
Throttle Shaft Screw
Part No: SC-002
Original Part No: n/a
Material: Stainless Steel
Qty in Kit: 9 (1 spare)
Assembly Guide 		1A8-14953-00
Throttle Shaft Washer
Part No: WS-002
Original Part No: 1A8-14953-00
Material: Teflon
Qty in Kit: 5
A Yamaha parts diagram can be downloaded here.
A parts diagram that uses the LiteTek part numbers can be downloaded here.
A factory service manual for the 1989 model can be downloaded here.
