Parts to suit Suzuki

LiteTek Carburettor Seal Kits to suit
Suzuki RF600 & RF900
Made from Fluorosilicone & FKM(Viton®)

  • Carburettor Type: Mikuni
  • Guarantee: We control the production of these parts. We do not sell products produced by other companies. If you have any problems with your product then contact us immediately and we will take action to ensure that the issue is dealt with to your satisfaction. If you are not satisfied with your purchase then return the goods to us within 30 days for a full refund.
  • Please check the Suzuki part numbers to ensure that this is the correct kit for your motorcycle before proceeding with your purchase.
  • Union Jack UK residents can also buy direct from our approved UK distributor, Vapourworx

FREE shipping worldwide when order total is greater than 1500 THB




Service Kit - 57 pieces
Part Number: CK-Suzuki-RF900
Price: 3350 THB (Thai Baht)
Packed Weight: 48.0 grams

13258-33C00

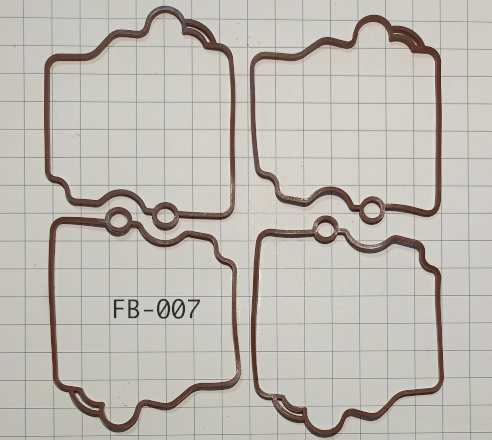

Float Bowl Seal
Part No: FB-007
Original Part No: 13258-33C00
Material: FKM (70% fluorine)
Qty in Kit: 4
 13251-33C00

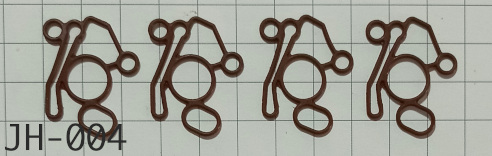

Jet Housing Seal
Part No: JH-004
Original Part No: 13251-33C00
Material: FKM (70% fluorine)
Qty in Kit: 4
Assembly Guide
13251-06C10
Top Cap O-Ring
Part No: OR-001
Original Part No: 13251-06C10
Material: FKM
Qty in Kit: 4
Assembly Guide 		13374-44080
Float Mount O-Ring
Part No: OR-010
Original Part No: 13374-44080
Superseded by: 13374-35C00
Material: Fluorosilicone
Qty in Kit: 4
Assembly Guide
13278-47090
Slide Housing O-Ring
Part No: OR-018 replaces OR-003
Original Part No: 13278-47090
Material: FKM
Qty in Kit: 4
Assembly Guide 		13294-33C00
Main Jet Housing O-Ring
Part No: OR-015
Original Part No: 13294-33C00
Material: FKM
Qty in Kit: 4
Assembly Guide 		13295-29900
Pilot Screw O-Ring
Part No: OR-005
Original Part No: 13295-29900
Material: FKM
Qty in Kit: 4
Assembly Guide 		13291-29900
Pilot Screw Washer
Part No: WS-001
Original Part No: 13291-29900
Material: Stainless Steel
Qty in Kit: 4
Assembly Guide
Merge Cavity o-ring
Pilot Merge Cavity O-Ring
Part No: OR-010
Original Part No: n/a
Material: Fluorosilicone
Qty in Kit: 4
Assembly Guide 		13673-44B00
Fuel Seal
Part No: FS-001
Original Part No: 13673-44B00
Material: FKM
Qty in Kit: 6
Is it Viton? 		13509-33C00
Vent O-Ring
Part No: OR-006
Original Part No: 13509-33C00
Superceded by: 09280-10016
Material: FKM
Qty in Kit: 4
Assembly Guide 		13418-17C00
Choke Plunger Caps
Part No: CS-001
Original Part No: 13418-17C00
Material: HNBR
Qty in Kit: 4
13267-44B00-000
Throttle Synch Screws
Part No: SC-008
Original Part No:13267-44B00-000
Material: Stainless Steel
Qty in Kit: 3
Choke Plunger Seals
Part No: CS-008
Original Part No: n/a
Material: FKM (70% Fluorine)
Qty in Kit: 4
Assembly Guide




Service Kit A - 36 pieces
Part Number: CKA-Suzuki-RF900
Price: 2310 THB (Thai Baht)
Packed Weight: 28.0 grams

13258-33C00
Float Bowl Seal
Part No: FB-007
Original Part No: 13258-33C00
Material: FKM (70% fluorine)
Qty in Kit: 4
 13251-33C00
Jet Housing Seal
Part No: JH-004
Original Part No: 13251-33C00
Material: FKM (70% fluorine)
Qty in Kit: 4
Assembly Guide
13251-06C10
Top Cap O-Ring
Part No: OR-001
Original Part No: 13251-06C10
Material: FKM
Qty in Kit: 4
Assembly Guide 		13374-44080
Float Mount O-Ring
Part No: OR-010
Original Part No: 13374-44080
Superseded by: 13374-35C00
Material: Fluorosilicone
Qty in Kit: 4
Assembly Guide
13278-47090
Slide Housing O-Ring
Part No: OR-018 replaces OR-003
Original Part No: 13278-47090
Material: FKM
Qty in Kit: 4
Assembly Guide 		13294-33C00
Main Jet Housing O-Ring
Part No: OR-015
Original Part No: 13294-33C00
Material: FKM Terpolymer
Qty in Kit: 4
Assembly Guide 		13295-29900
Pilot Screw O-Ring
Part No: OR-005
Original Part No: 13295-29900
Material: FKM
Qty in Kit: 4
Assembly Guide 		13291-29900
Pilot Screw Washer
Part No: WS-001
Original Part No: 13291-29900
Material: Stainless Steel
Qty in Kit: 4
Assembly Guide
Merge Cavity o-ring
Pilot Merge Cavity O-Ring
Part No: OR-010
Original Part No: n/a
Material: Fluorosilicone
Qty in Kit: 4
Assembly Guide




Throttle Shaft Kit C - 20 pieces
Part Number: CKC-Suzuki-Large
Price: 400 THB (Thai Baht)

13651-51010
Throttle Shaft Seal
Part No: TS-001
Original Part No: 13651-51010
Material: FKM
Qty in Kit: 6
Assembly Guide 		13604-44080
Throttle Shaft Screw
Part No: SC-002
Original Part No: 13604-44080
Material: Stainless Steel
Qty in Kit: 9 (1 spare)
Assembly Guide 		13557-47070
Throttle Shaft Washer
Part No: WS-002
Original Part No: 13557-47070
Material: Teflon
Qty in Kit: 5

A Suzuki parts diagram can be downloaded here.
A parts diagram that uses the LiteTek part numbers can be downloaded here.
