R4 Project> Headlights

R4 Headlights - Hella 90mm
Performance Range


Since I decided to use the top piece of the Yamaha R6 as a basis for the fairing, and I don't like the elongated diamond headlights I needed to find a suitable alternative.

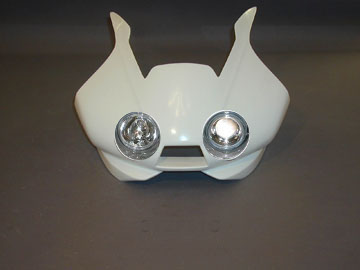

In the planning stage I photoshopped an image of the headlights into a view of an early model R6 race fairing.

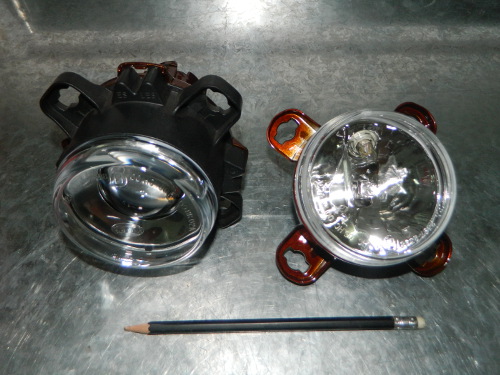

1ML-247-042-02 1K0-247-043 They are quite small which is exactly what is needed.
1KO 247.043-001

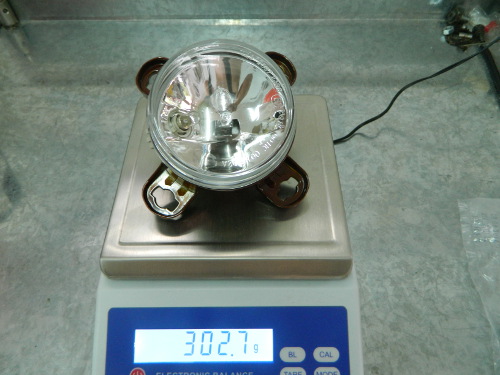

The high beam assembly (Hella part No 1K0 247 043-001) comes with a screw mounting kit and park globe. It will suit LH or RH drive. Weight 302 grams.
254-163-00

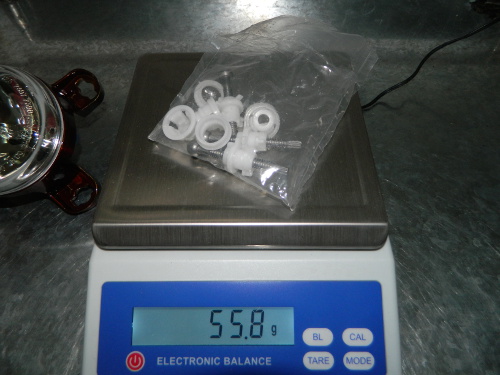

The screw kit that comes with the high beam assembly. Weight 55 grams.
1ML 247 042-187

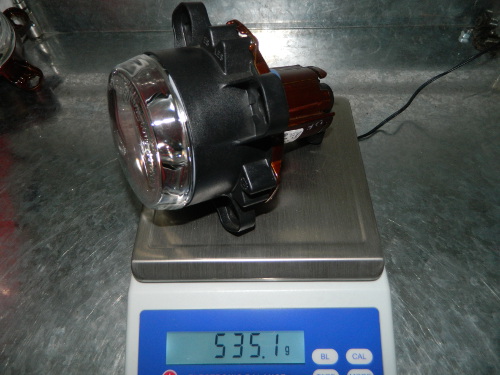

The low beam assembly (Hella part No 1ML 247 042-187). Mine came without any fittings. This is designed for countries where you drive on the LH side of the road. Weight 535 grams.
A Hella guide for 90mm lights can be downloaded here.
