Parts to suit Suzuki

LiteTek Carburettor Seal Kits to suit

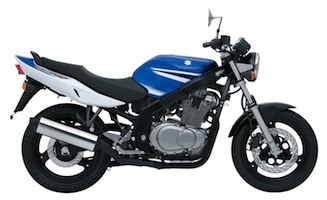

Suzuki GS500 1989 - 2000
Made from Fluorosilicone & FKM(Viton®)

  • Carburettor Type: Mikuni
  • Guarantee: We control the production of these parts. We do not sell products produced by other companies. If you have any problems with your product then contact us immediately and we will take action to ensure that the issue is dealt with to your satisfaction. If you are not satisfied with your purchase then return the goods to us within 30 days for a full refund.
  • Please check the Suzuki part numbers to ensure that this is the correct kit for your motorcycle before proceeding with your purchase.

FREE shipping worldwide when order total is greater than 1500 THB




IMPORTANT! For customers with a 1997 to 2000 model, check that you have the style of float bowl seal shown here before ordering. If this is not your style of float bowl seal then go to the next GS500 web page.



Full Service Kit - 32 pieces
Part Number: CK-Suzuki-GS500-89-96
Price: 1220 THB (Thai Baht)

13258-44B00

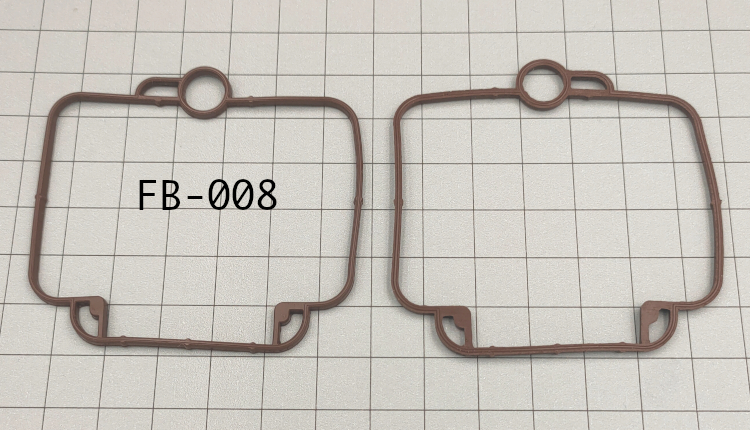

Float Bowl Seal
Part No: FB-008
Original Part No: 13258-44B00
Material: FKM (70% Fluorine)
Qty in Kit: 2
 13509-17C00
Top Cap O-Ring
Part No: OR-025
Original Part No: 13509-17C00
Material: FKM
Qty in Kit: 2
Assembly Guide
13278-47090
Slide Housing O-Ring
Part No: OR-018
Original Part No: 13278-47090
Material: FKM
Qty in Kit: 2
Assembly Guide
13374-44080
Float Mount O-Ring
Part No: OR-010
Original Part No: 13374-44080
superseded by 13374-35C00
Material: Fluorosilicone
Qty in Kit: 2
Assembly Guide 		13374-46710
Float Assy O-Ring
Part No: OR-094
Original Part No: 13374-46710
Material: Fluorosilicone
Qty in Kit: 2
 13295-29900
Pilot Screw O-Ring
Part No: OR-005
Original Part No: 13295-29900
Material: FKM
Qty in Kit: 2
Assembly Guide 		13291-29900
Pilot Screw Washer
Part No: WS-001
Original Part No: 13291-29900
Material: Stainless Steel
Qty in Kit: 2
Assembly Guide
13673-44B00
Fuel Seal
Part No: FS-001
Original Part No: 13673-44B00
Material: FKM
Qty in Kit: 2
Is it Viton? 		13418-17C00
Choke Plunger Caps
Part No: CS-001
Original Part No: 13418-17C00
Material: HNBR
Qty in Kit: 2
 13557-47070
Throttle Shaft Washer
Part No: WS-002
Original Part No: 13557-47070
Material: Teflon
Qty in Kit: 3
 13604-44080
Throttle Shaft Screw
Part No: SC-002
Original Part No: 13604-44080
Material: Stainless Steel
Qty in Kit: 5 (1 spare)
Assembly Guide
13556-44B00
Throttle Shaft Seal
Part No: TS-002
Original Part No: 13556-44B00
Material: Felt
Qty in Kit: 3
Choke Plunger Seals
Part No: CS-008
Original Part No: n/a
Material: FKM (70% Fluorine)
Qty in Kit: 2
Assembly Guide 		13267-44B00
Throttle Synch Screws
Part No: SC-008
Original Part No:13267-44B00
Material: Stainless Steel
Qty in Kit: 1
A service manual for the GS500E can be downloaded here.
An owners manual for the GS500F can be downloaded here.
