Electric Water Pump

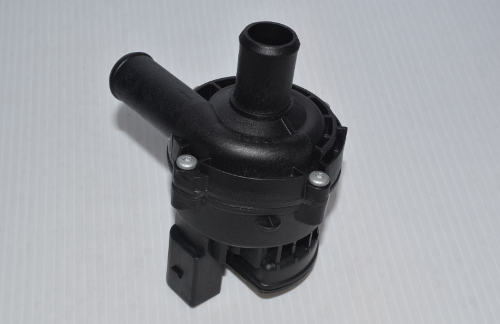

This Bosch electric water pump, part number 0392023004, is used in place of the mechanical pump.

Advantages of an electric water pump.

Some more information can be found here.

A coolant flow diagram from the FZR400 service manual can be downloaded here.
Technical specifications for the water pump can be downloaded here.

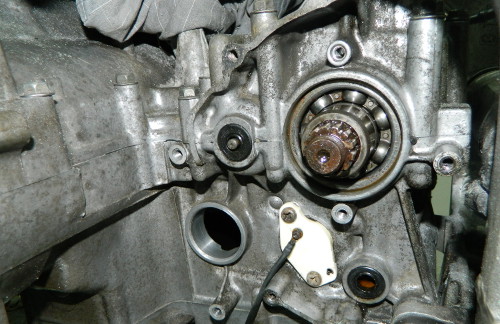

Bosch PA66-GF30 Hole Once the original mechanical pump is removed you are left with a 38mm hole that needs to be plugged.

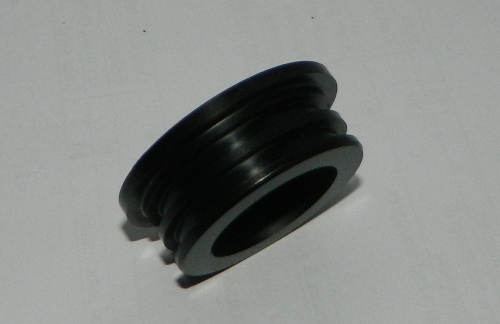

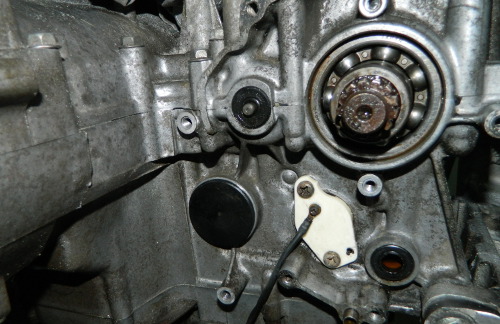

bung This bung is made from Delrin and has two grooves to suit 32.0 * 3.0mm o-rings. It is an interference fit of size-for-size. bung Then just tap the bung into position with a nylon hammer.

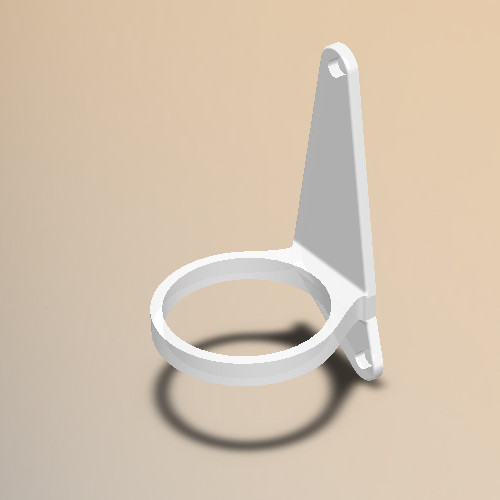

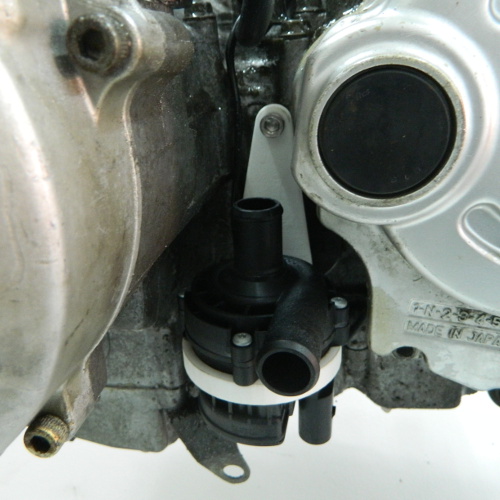

bung Drawing of water pump bracket. Will be 3D printed in nylon. bung Printed and fitted. No problems or clearance issues, so I can order some silicone hoses.

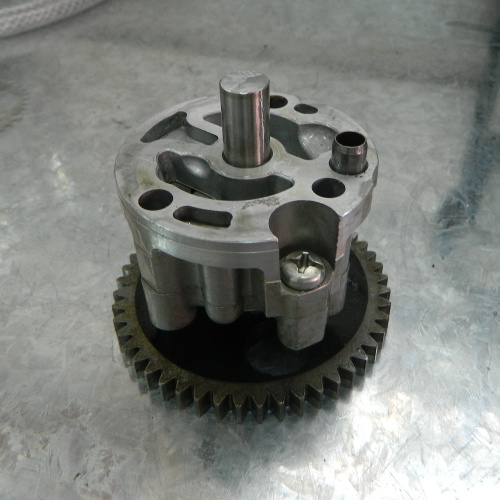

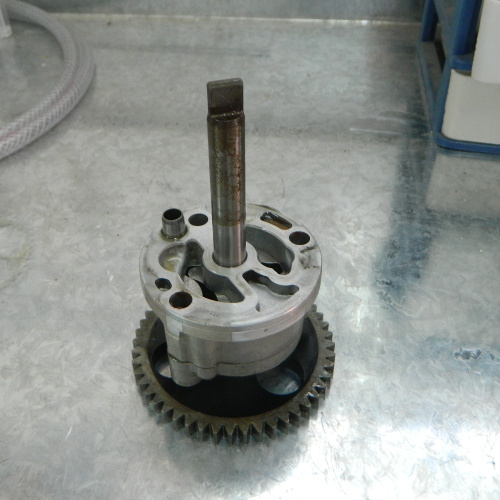

bung The oil pump has to be taken out from the other side of the engine and have the end of the shaft cut off. It used to drive the mechanical water pump, and it is not a good idea to leave it as an unsupported shaft. bung
