Triple Clamp Offset Yamaha FZR400RR 3TJ1 - 30mm


Triple Clamp Offset Yamaha FZR400RR 3TJ1

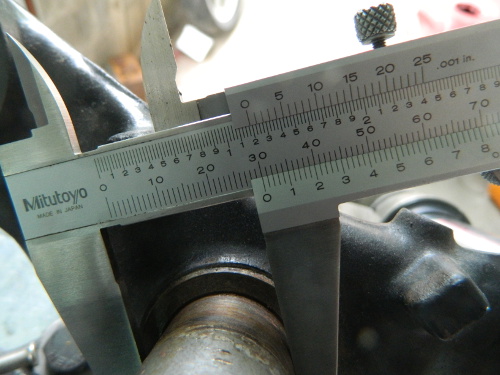

Measure the stem diameter = 30mm. We need the radius = 15mm
Triple Clamp Offset Yamaha FZR400RR 3TJ1

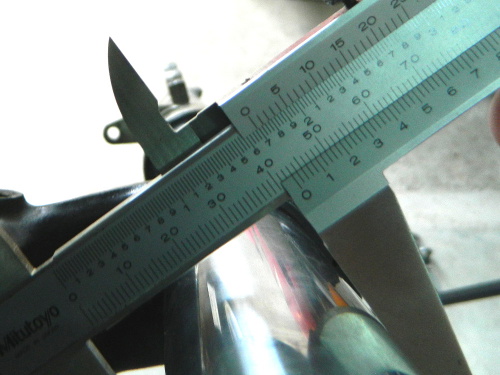

Stanchion diameter is 43mm so radius = 21.5mm
Triple Clamp Offset Yamaha FZR400RR 3TJ1

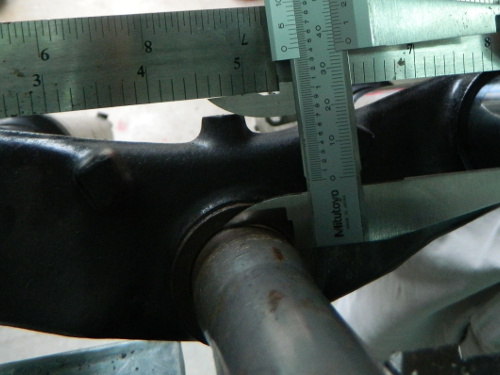

Distance between front edge of fork tube and stem = 36.5mm
Triple Clamp Offset Yamaha FZR400RR 3TJ1
Offset = 36.5 - 21.5 (radius of fork tube) + 15 = 30mm
