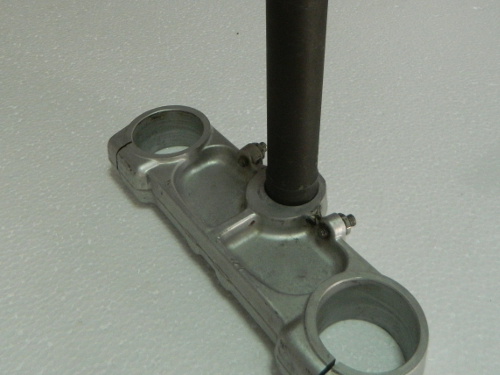

Triple Clamp Offset Ducati 848


Triple Clamp Offset Ducati
          848 Triple Clamp Offset Ducati
          848

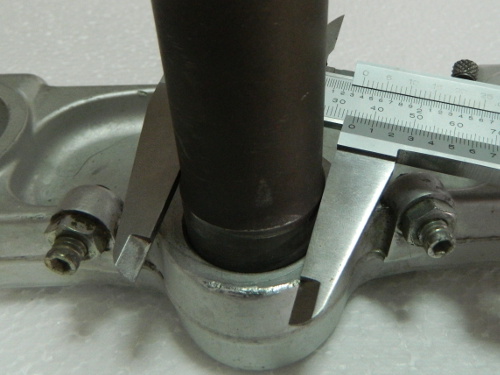

Measure the stem diameter = 35mm. We need the radius = 17.5mm
Triple Clamp Offset Ducati
          848

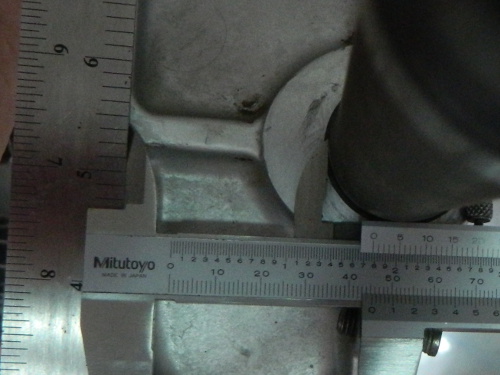

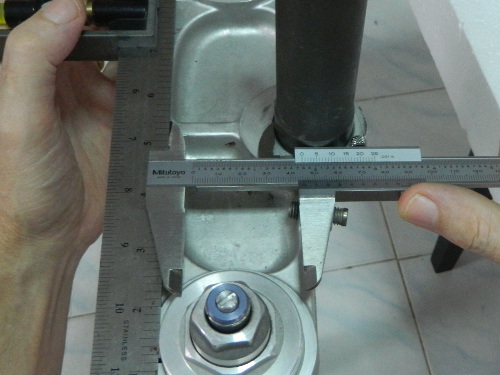

Distance between front edge of fork tube and stem = 45mm
Triple Clamp Offset Ducati
          848
Offset = 45 - 26.5 (radius of fork tube) + 17.5 = 36mm
