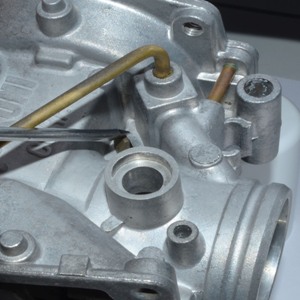

 1/ Remove the choke plunger clip by pressing both tangs inwards. 2/ Then pull the plunger assembly through the seal. 3/ Remove the old seal from the clip. |
4/ Plunger assembly components. |

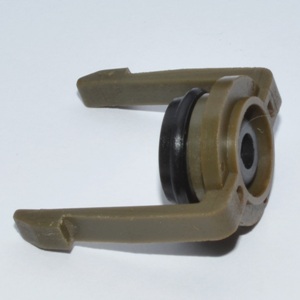

5/ Lubricate new seal with silicon and fit to clip. |
6/ Push plunger through seal. |
7/ Take note of this slot. |
8/ It aligns here. |
9/ Push the clip home and then ensure that the plunger moves freely up and down. |
